课表

创建时间：2022-09-16 02:43:23

最后修改时间：2022-09-19 11:21:08

作业1

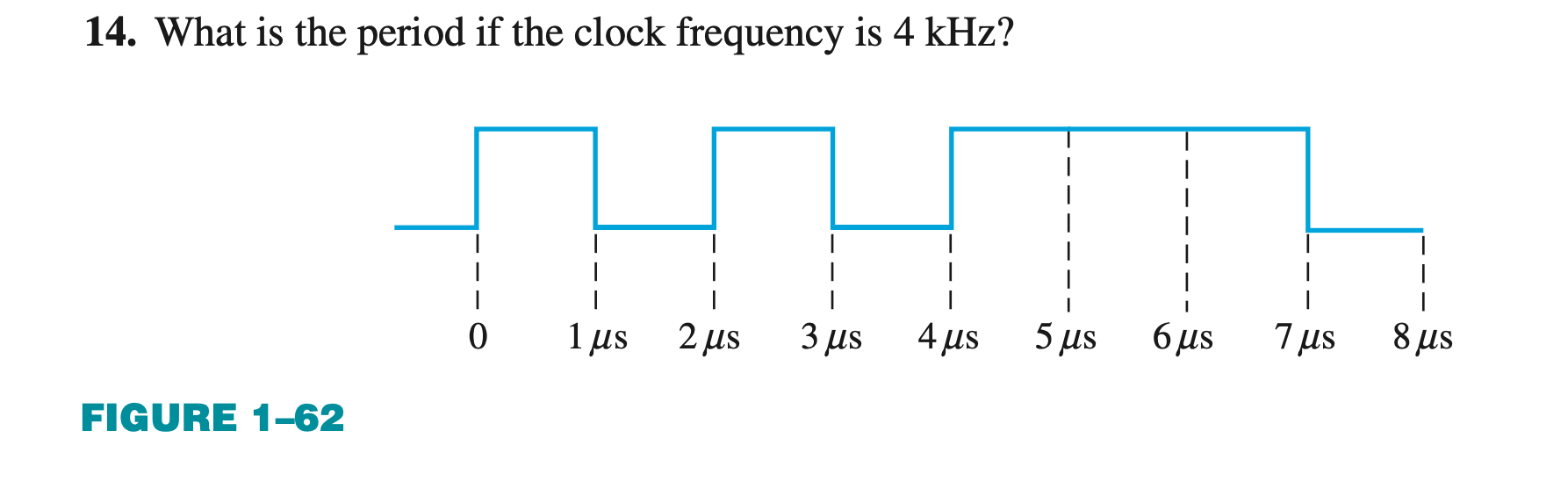

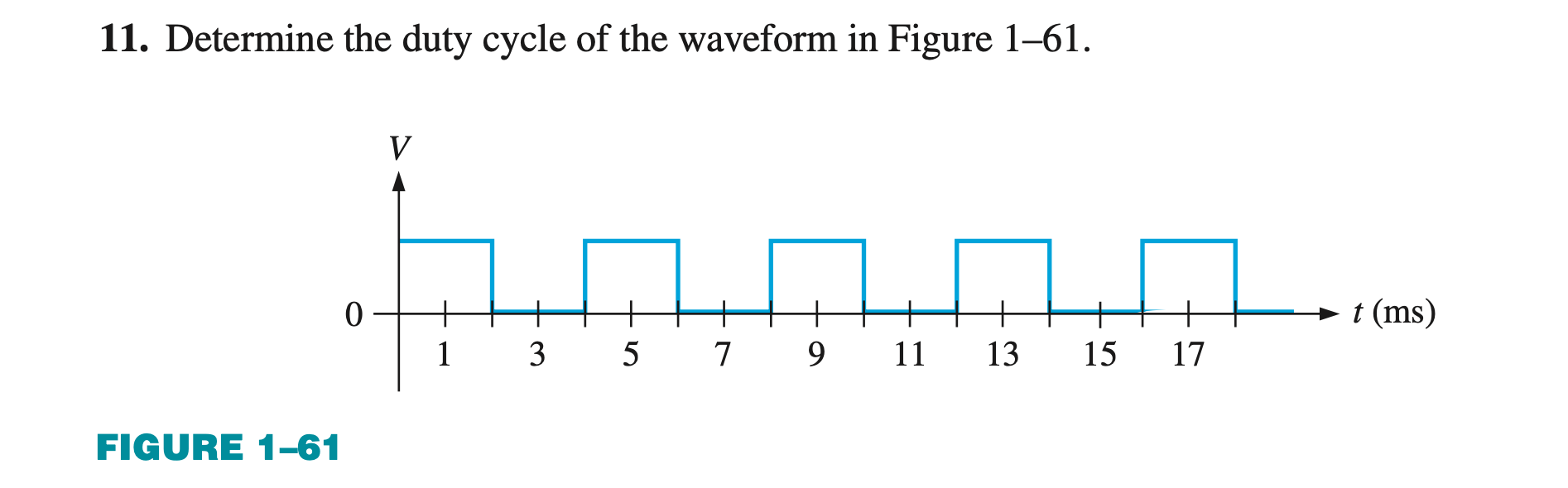

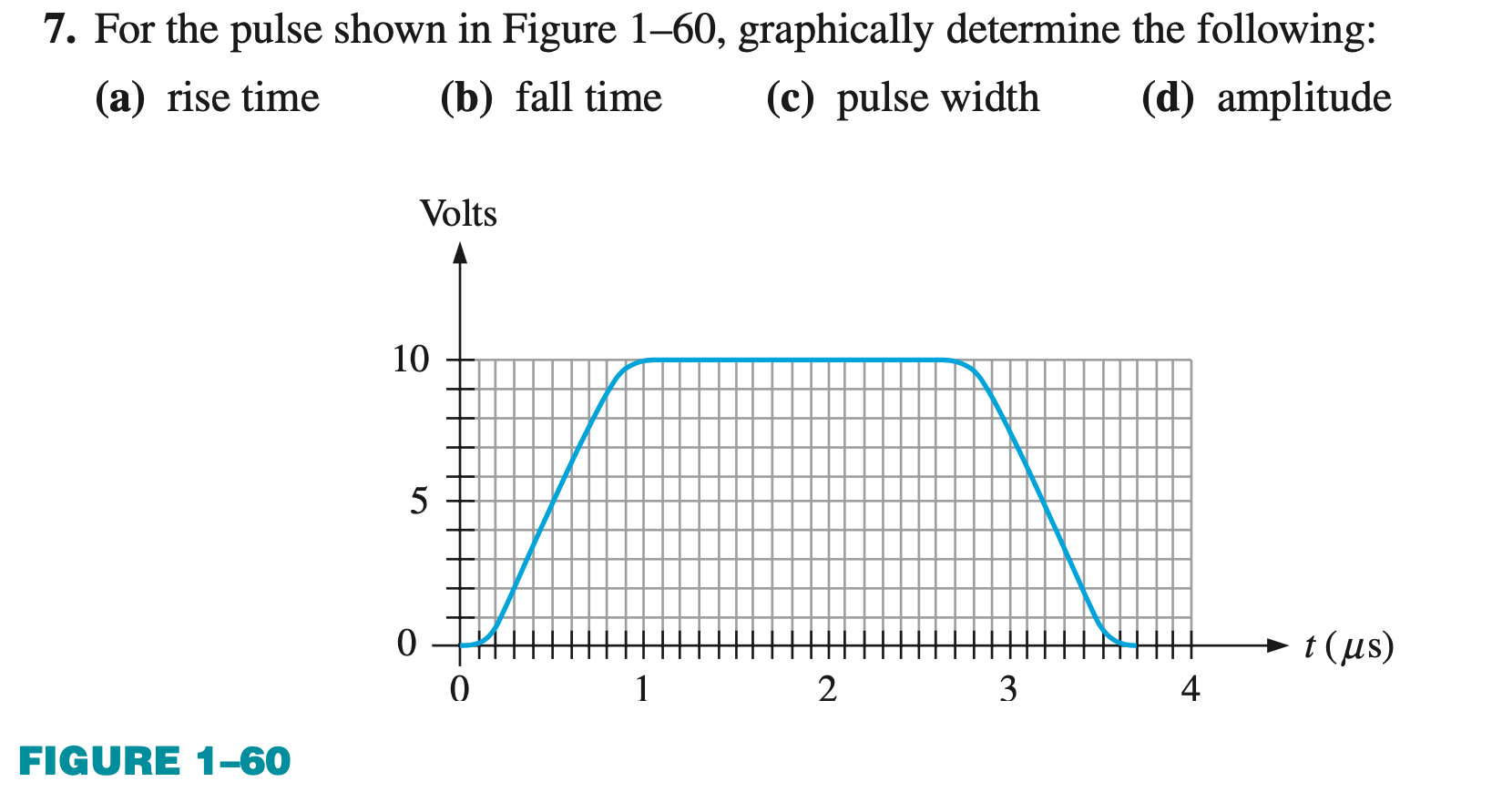

• Chap1：

• Chap2: 1. Convert the following decimal numbers to binary, octal, hexadecimal and BCD numbers.
  123.5 237.125 57.725
  2. Use the 8-bit 2's complement of the following decimal numbers to perform computaion.
  -123-170 -75+65 68+200 89-70
  3. Use BCD numbers of the following decimal numbers to compute the result.
  78+45 89+145
  4. Please give the correct description when the following descriptions are error.

                  * The octal number system is a weighted system with eight digits.
                  *  The binary number system is a weighted system with two digits.
                  *  MSB stands for most significant bit.
                  * In hexadecimal, 9+ 1 = 10.
                  * The 1’s complement of the binary number 1010 is 0101.
                  * The 2’s complement of the binary number 1111 is 0000.
                  *  The right-most bit in a signed binary number is the sign bit.
                  * The hexadecimal number system has 16 characters, six of which are alphabetic characters.
                  *  BCD stands for binary coded decimal.
                  * An error in a given code can be detected by verifying the parity bit.

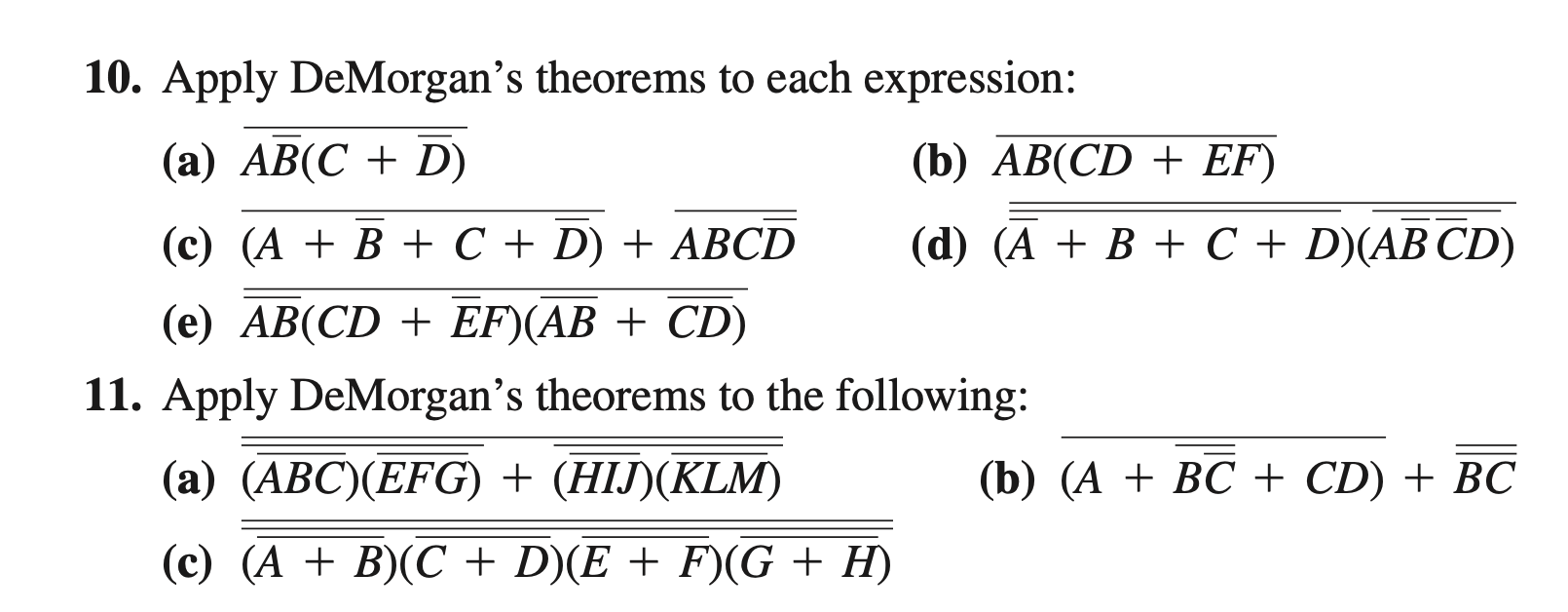

作业2

•
•
•
•
•
•
•
•
• 25 Define the domain of each SOP expression in Problem 23 and convert the expression to standard SOP form.
• Convert the expression in Problem 23 to standard POS forms.
•

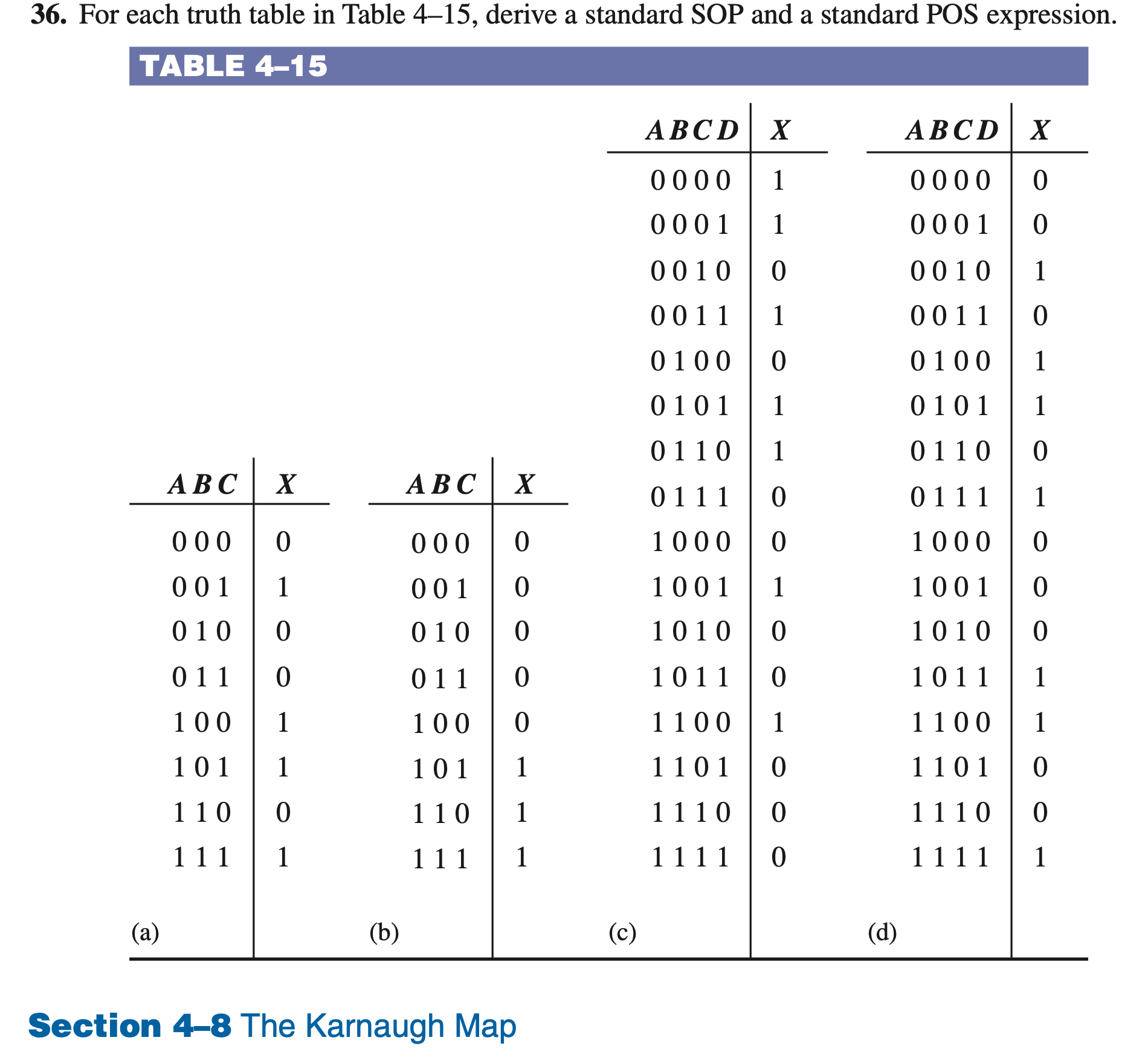

• Use Karnaugh Map to simplify the truth tables in Problem 36.

创建时间：2022-09-22 02:27:59

最后修改时间：2022-09-22 02:42:38

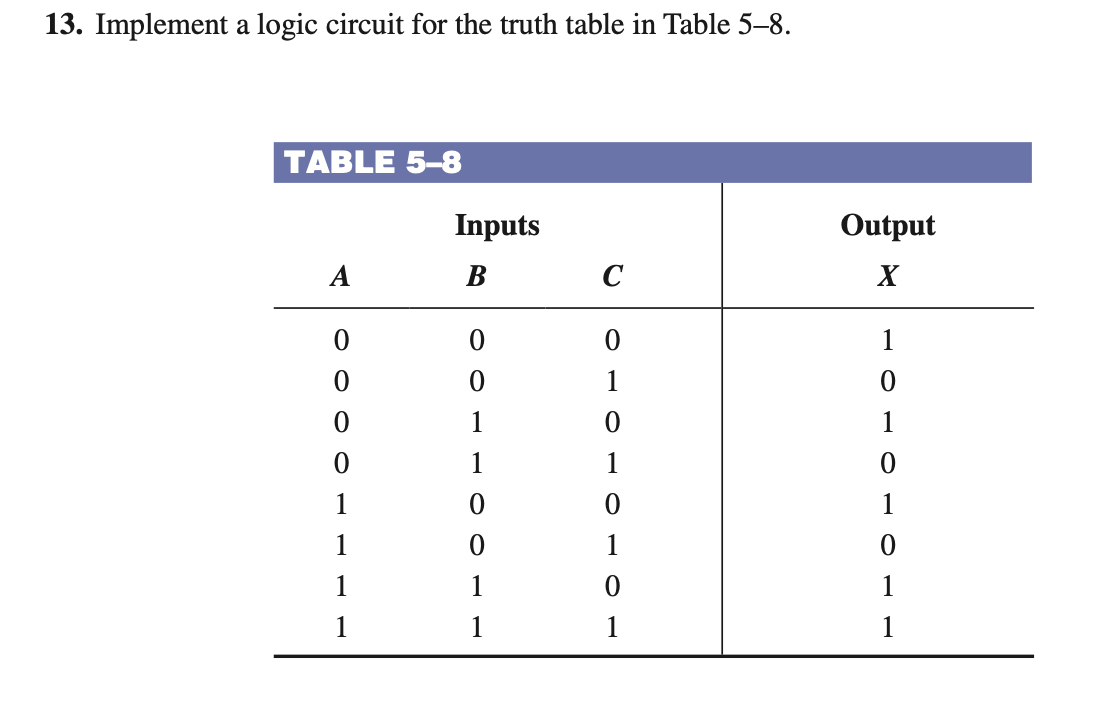

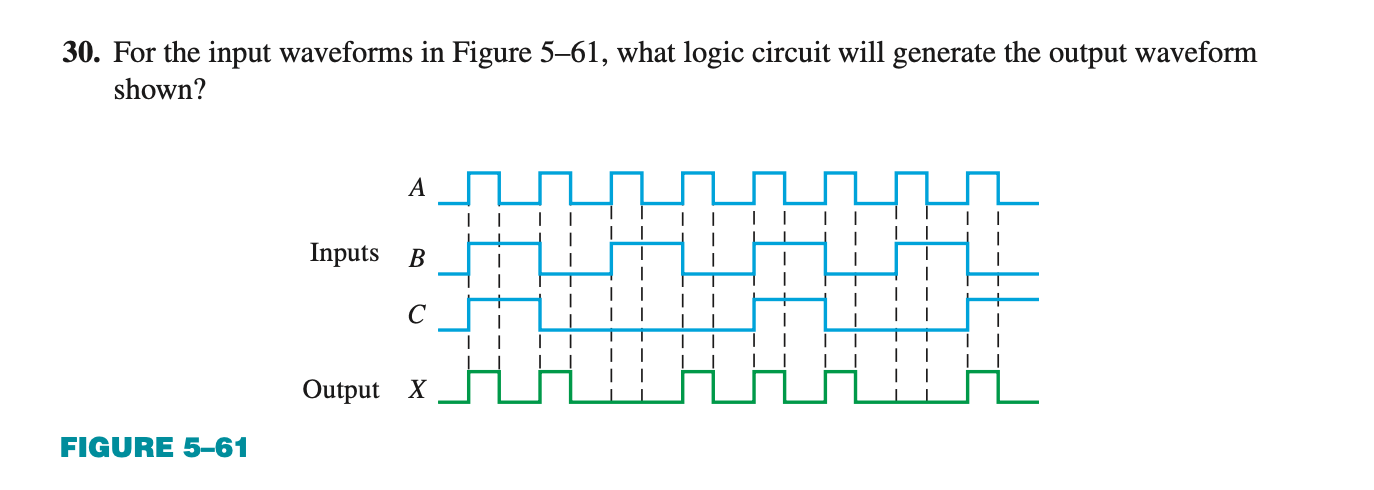

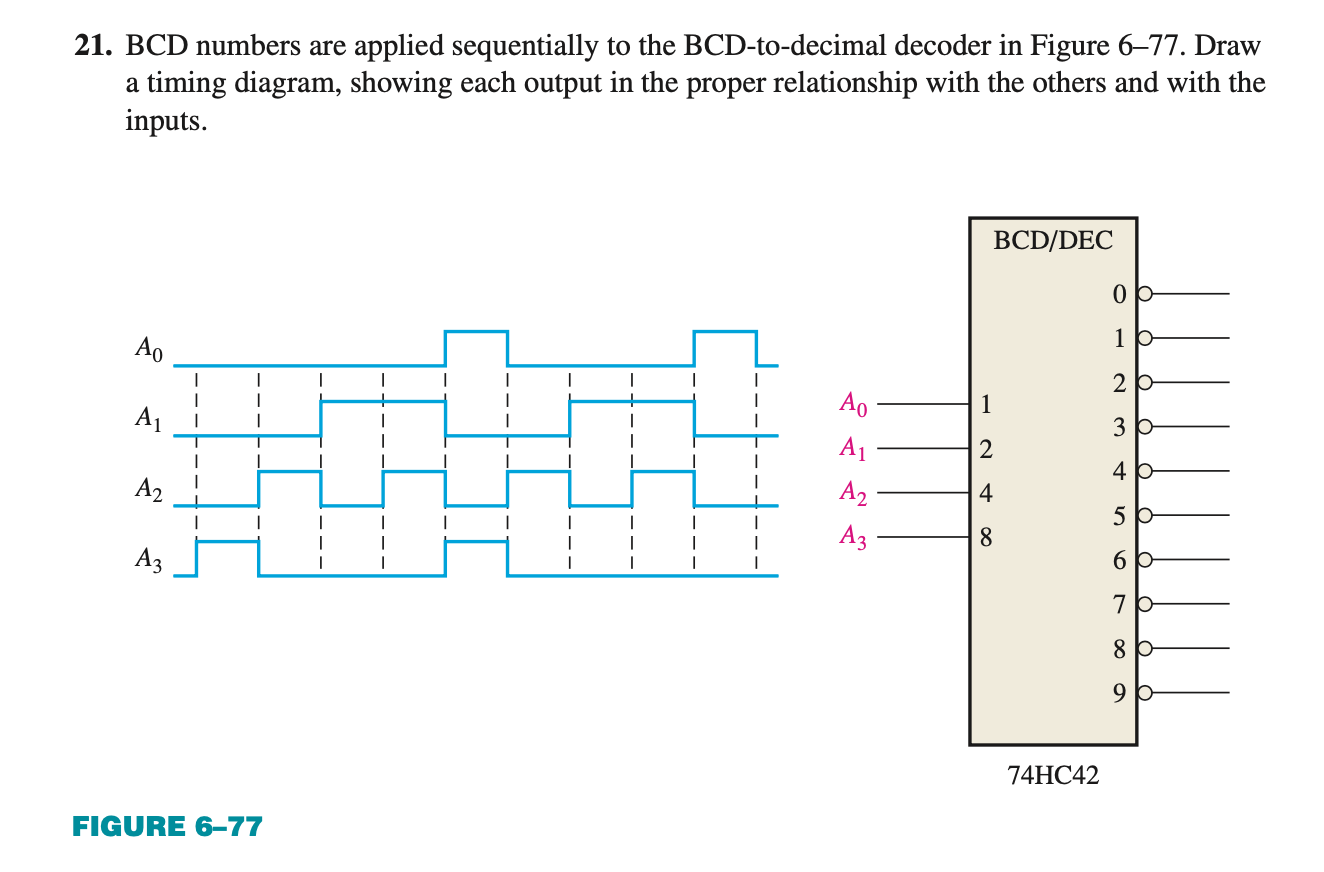

作业3 chap5-6

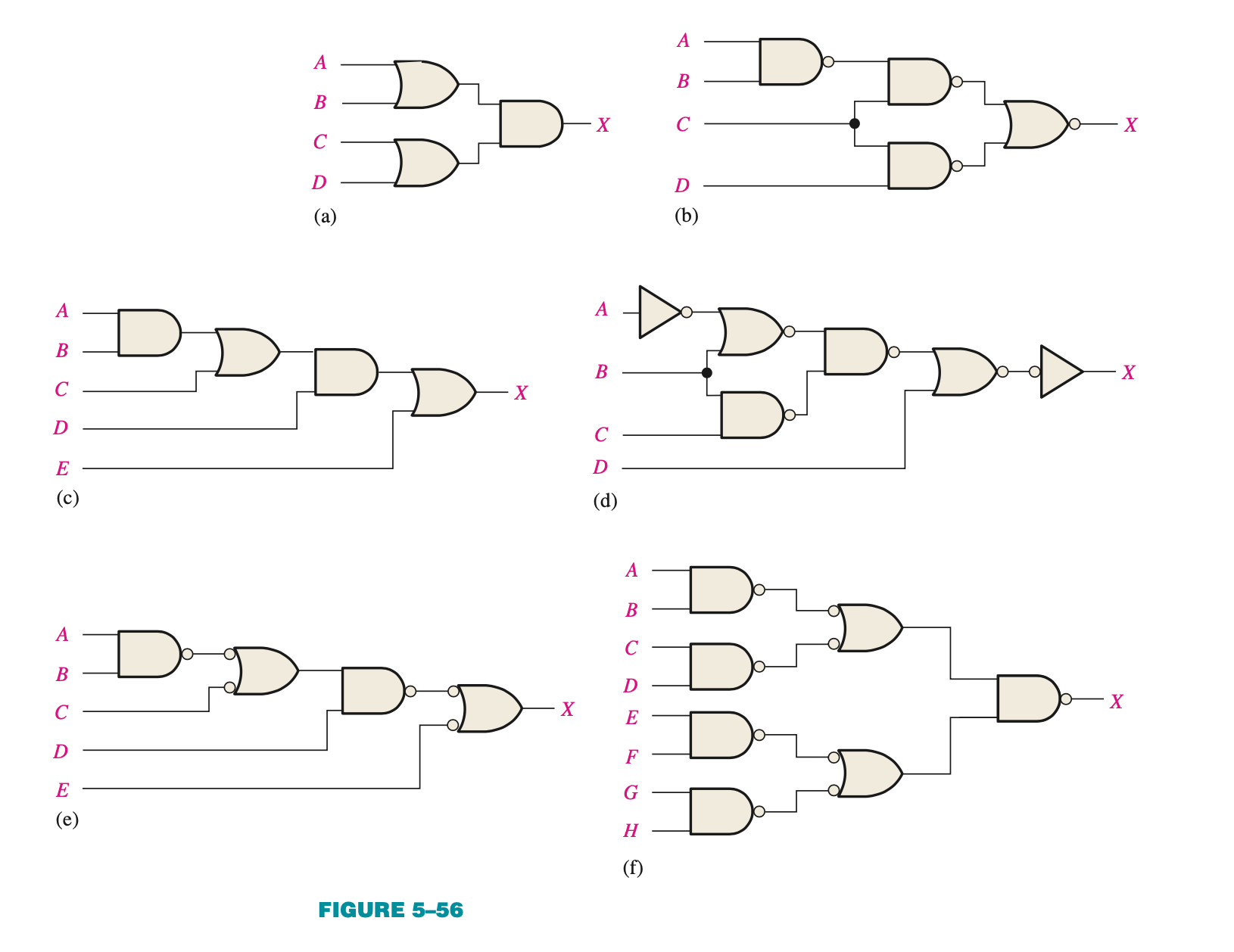

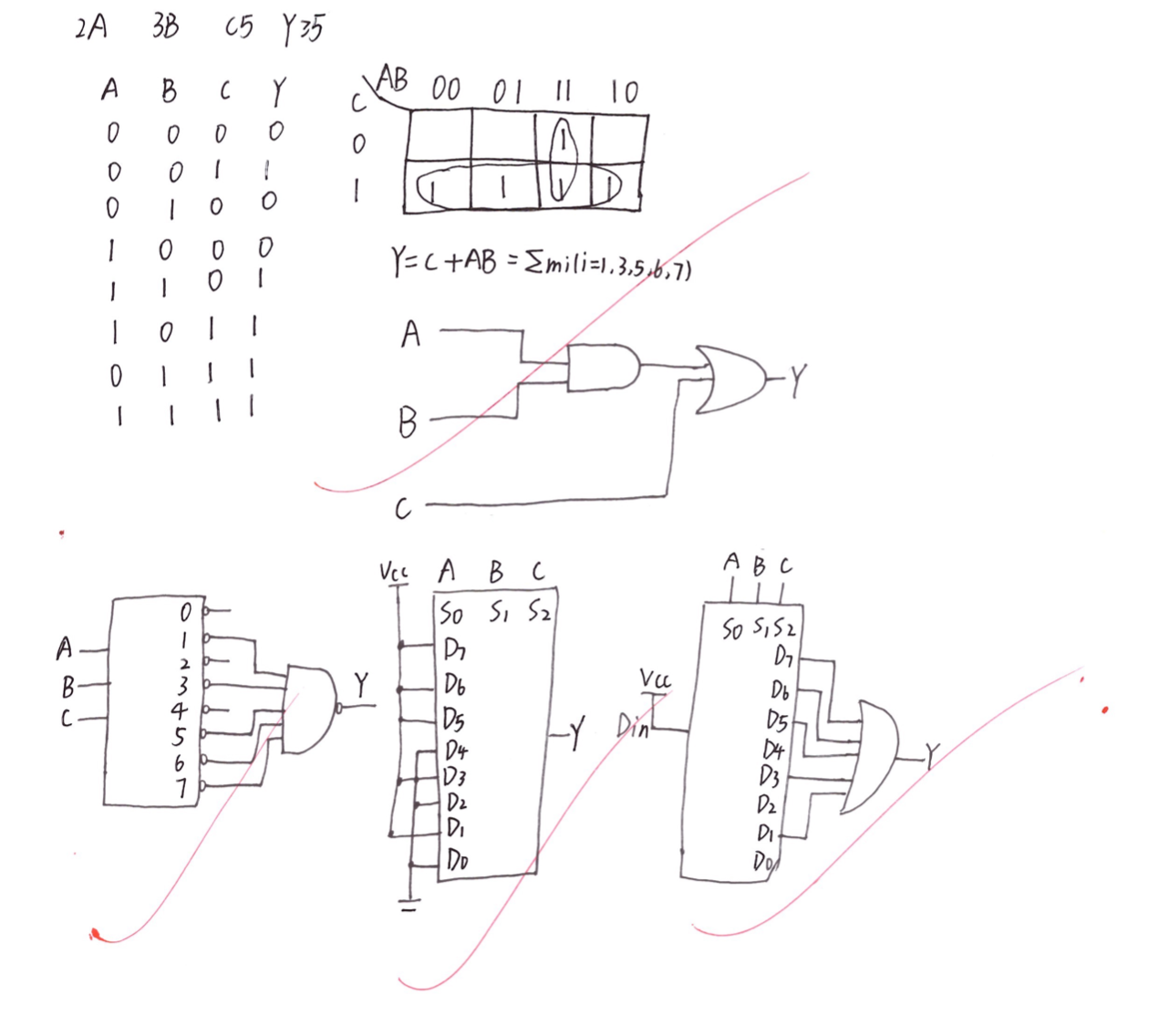

1. Write the output expressions for the following circuits and Develop their truth table.

2.
3.

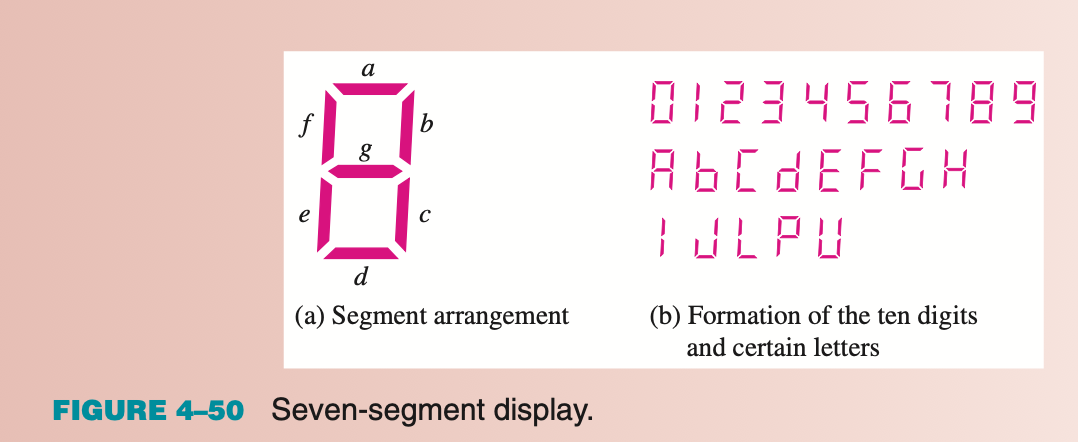

4. In order to display 0-9, please give the logic circuit for segment d of 7-segment display using the variables ABCD. Note that the "Con't Care" items should be considered.

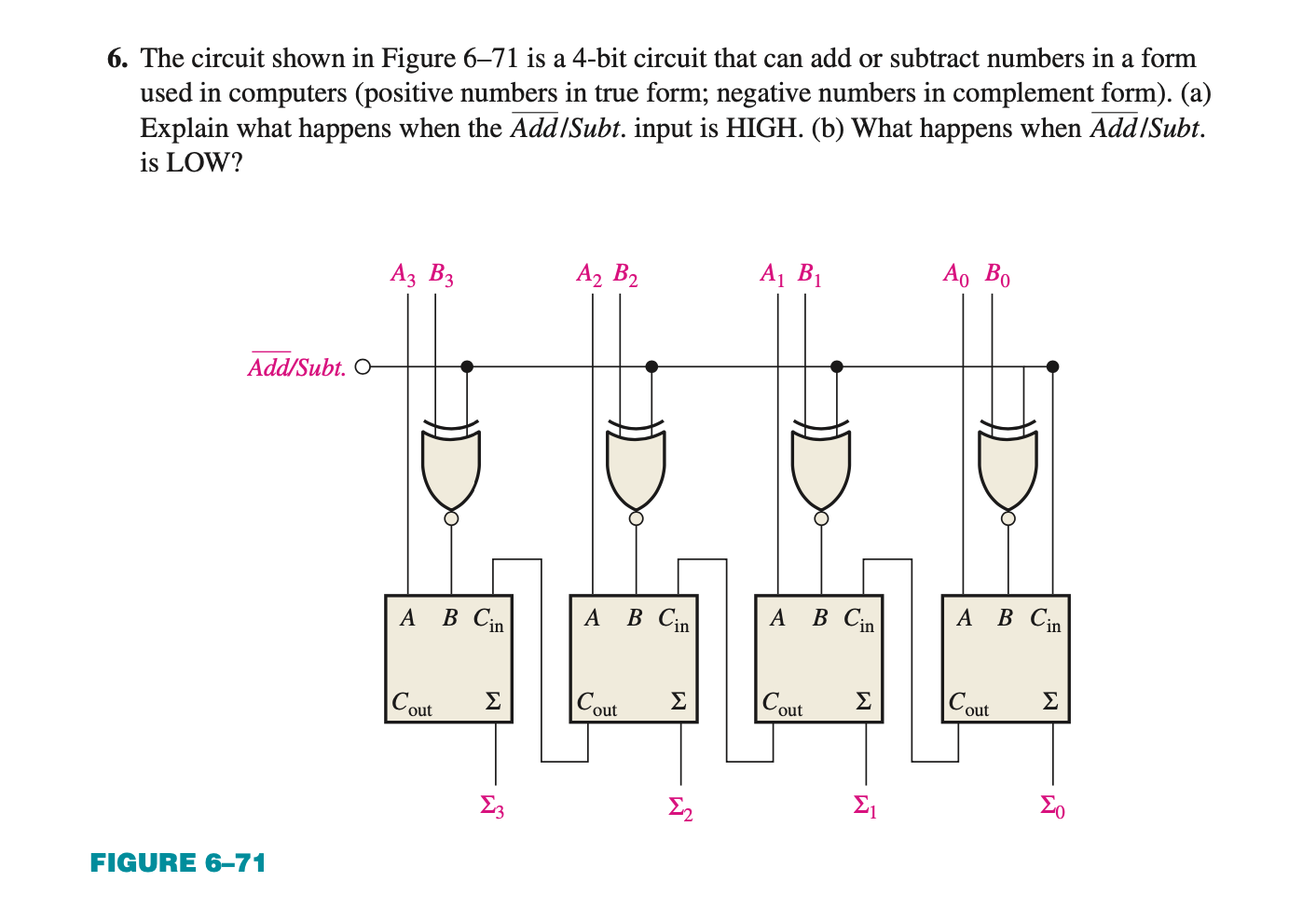

5.
6.
7.
8.
9. Design a half-adder via selector 74HC151.
10. Design a full-adder via decoder 74HC154.

创建时间：2022-10-15 02:21:56

最后修改时间：2022-10-15 02:31:13

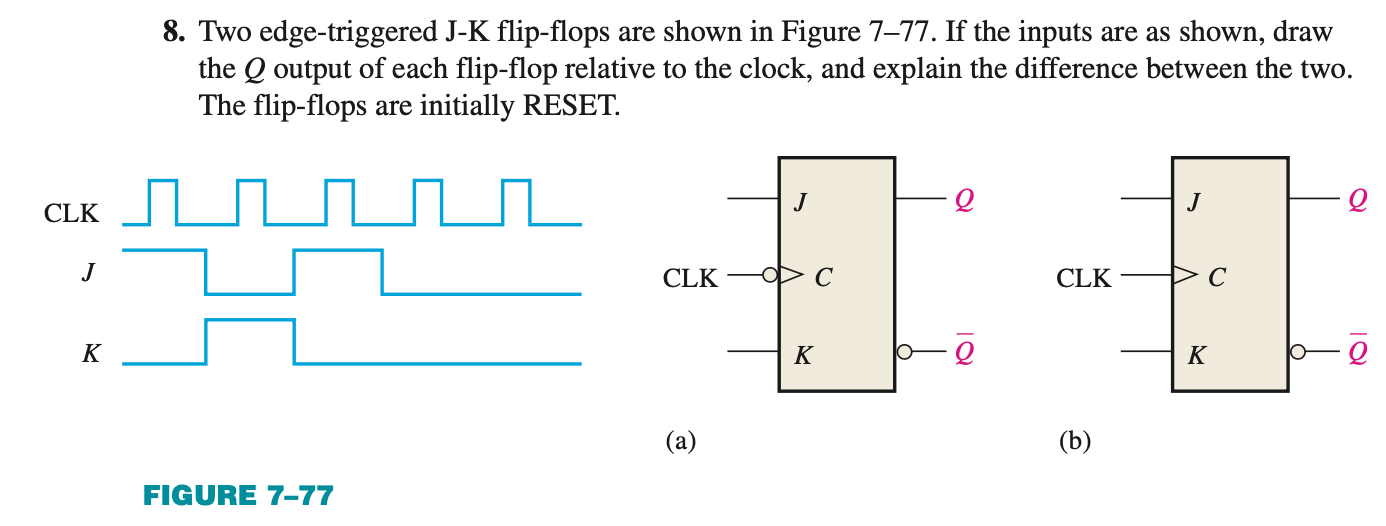

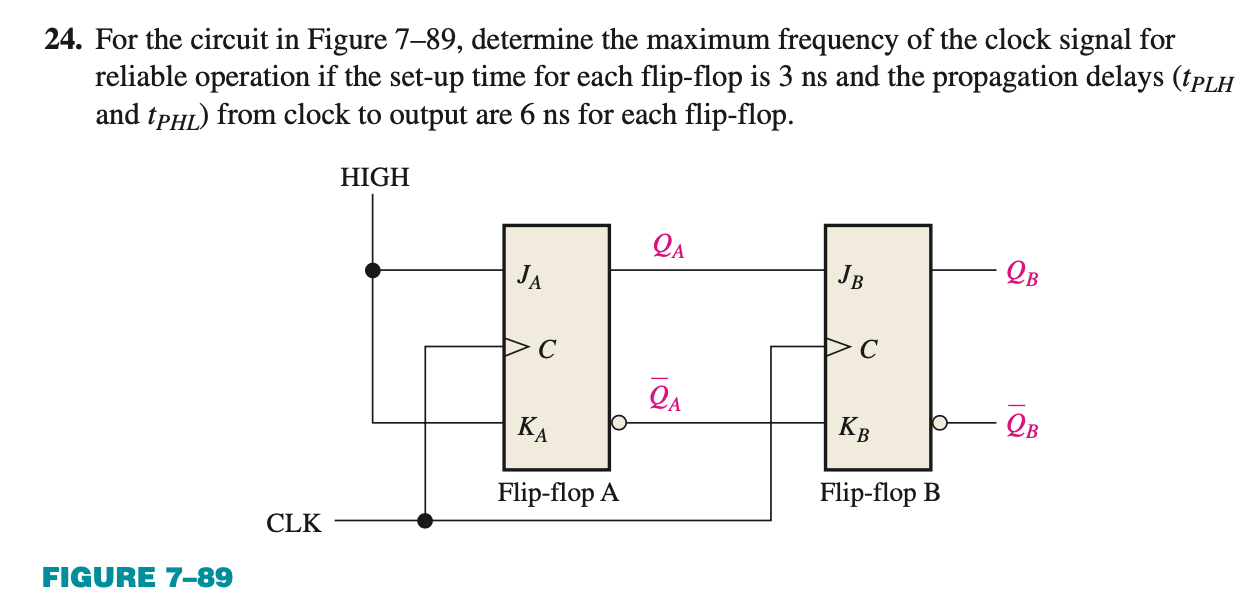

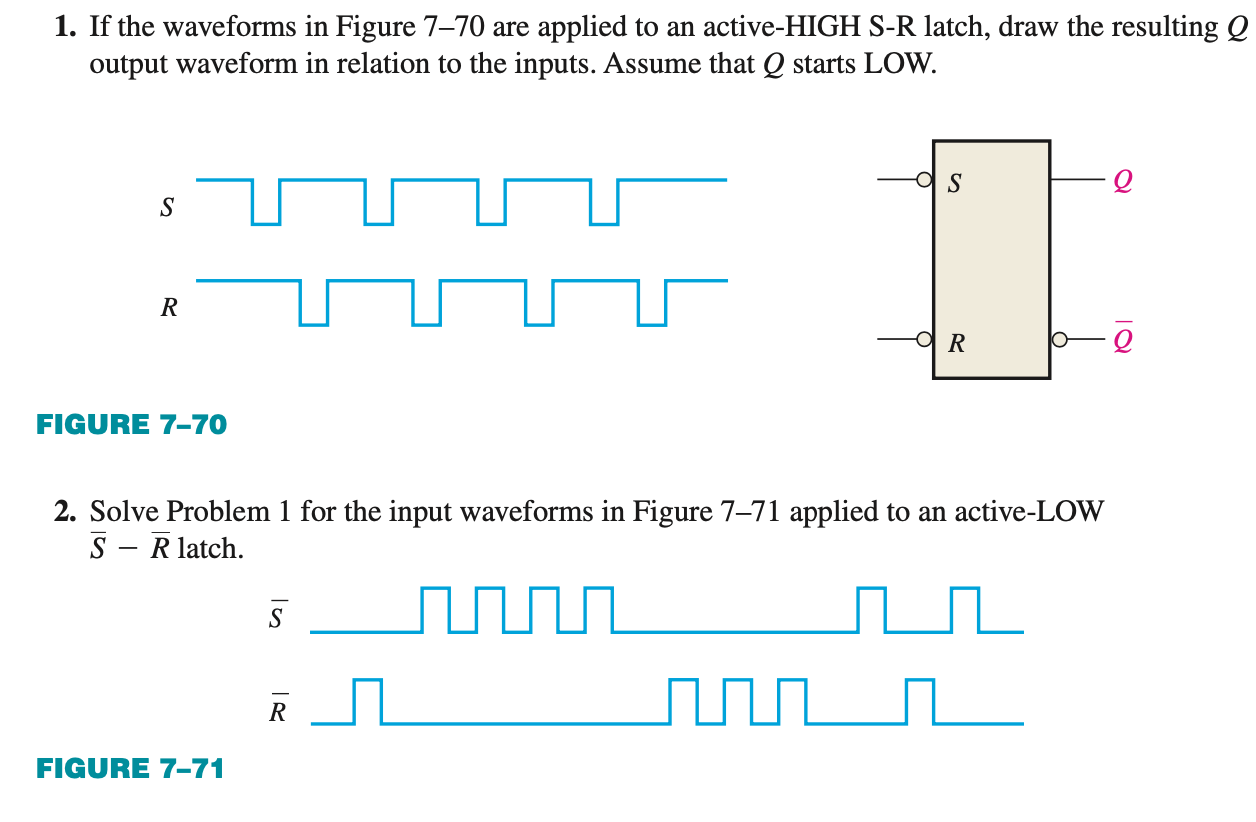

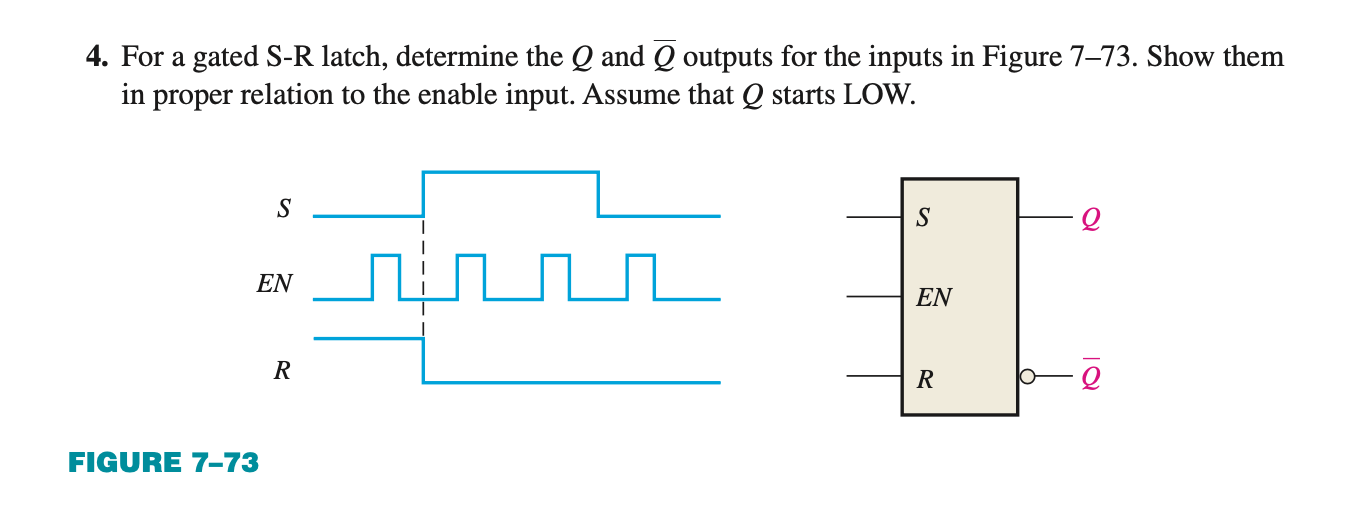

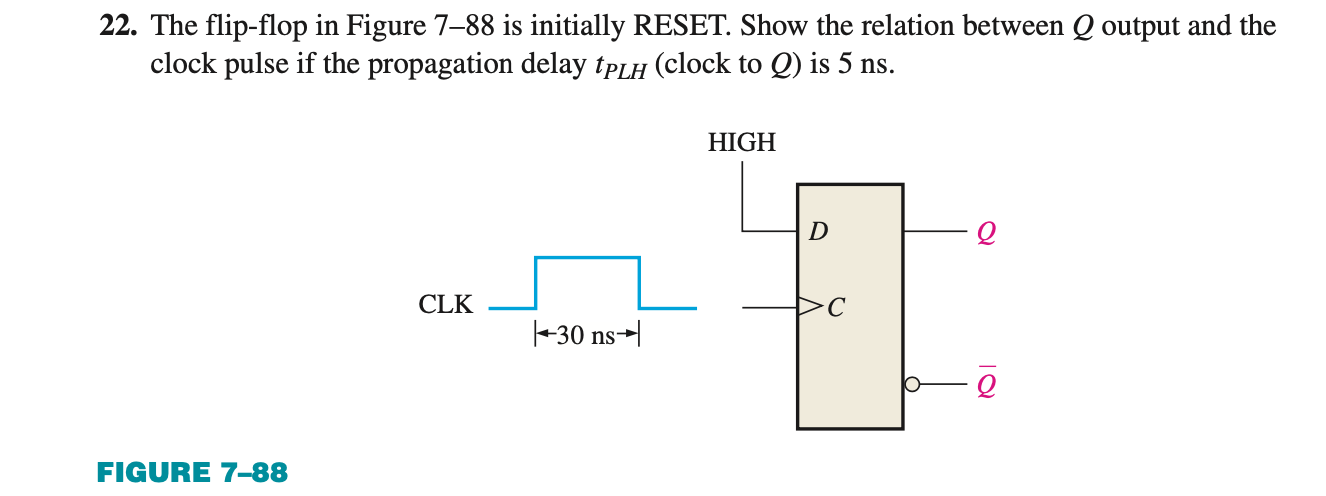

作业4 Chap 7

•
•
•
•
•
•
•
•
•
• 29. Create a one-shot using a 555 timer that will produce a 0.5 s output pulse.
•

创建时间：2022-10-20 01:26:59

最后修改时间：2022-10-20 07:39:05

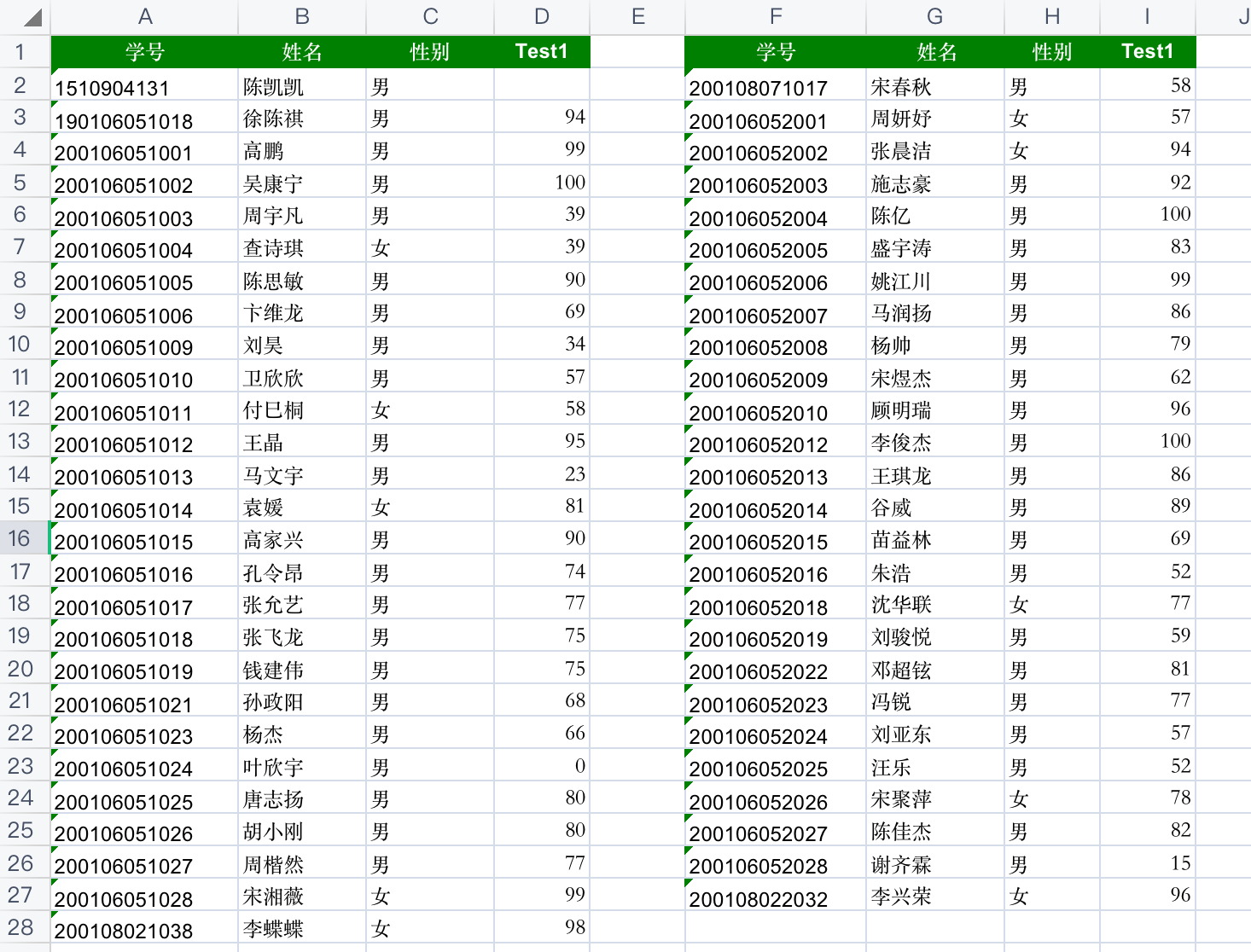

Test1

• 成绩：
•

创建时间：2022-11-05 10:45:13

最后修改时间：2022-11-05 10:53:58

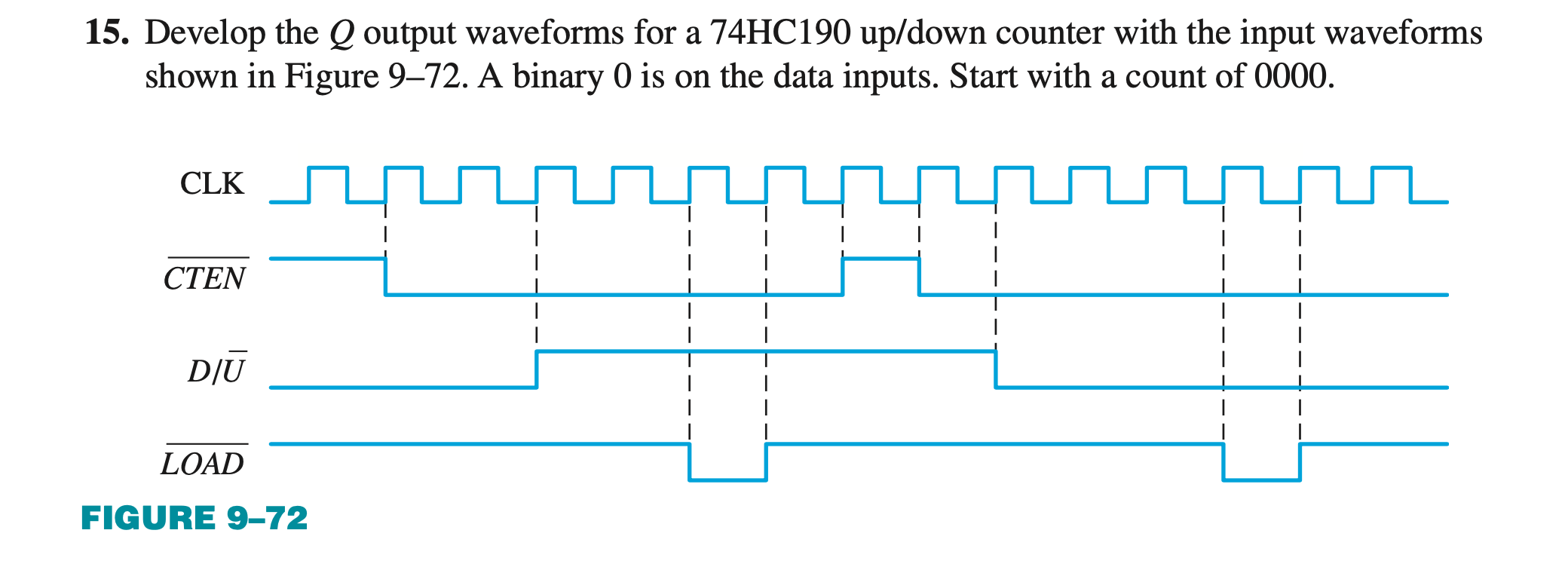

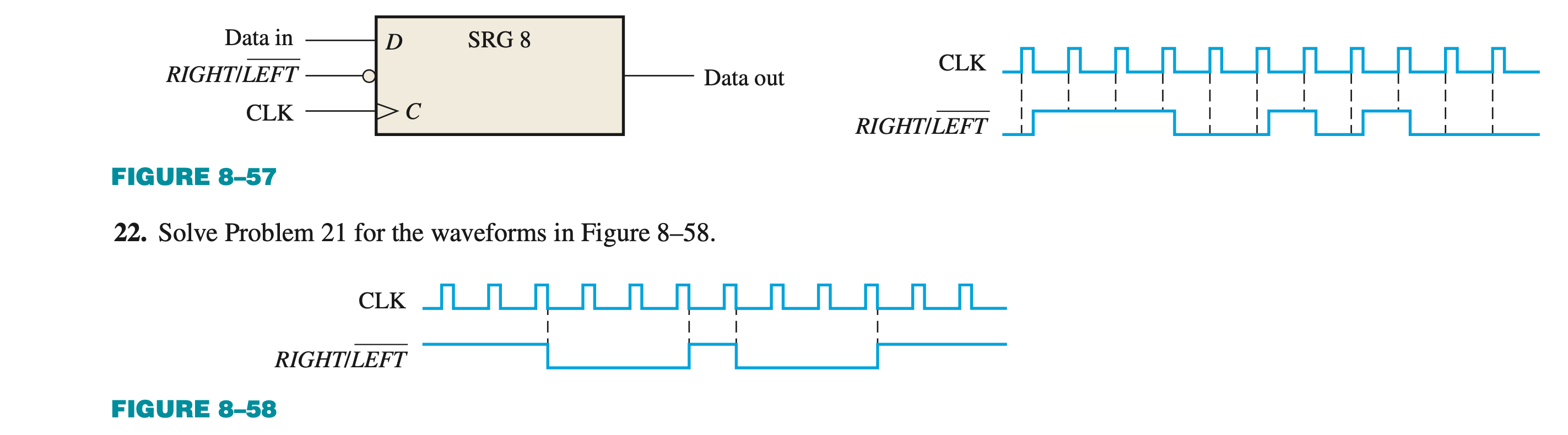

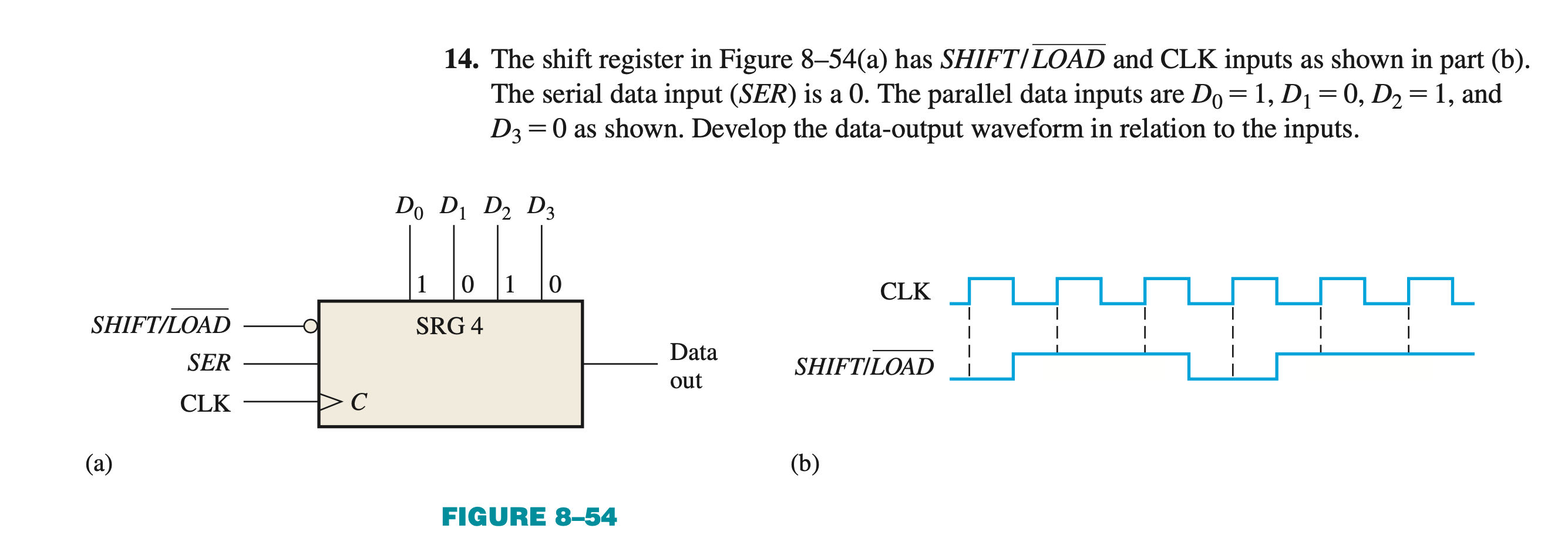

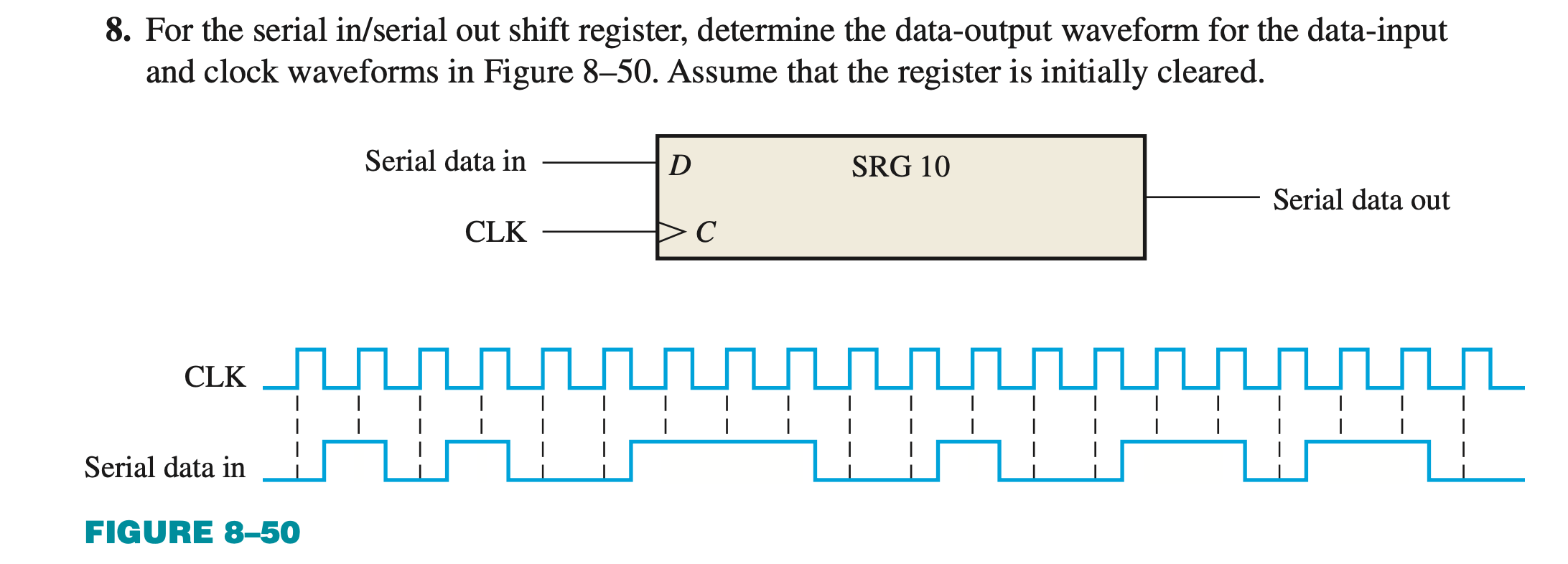

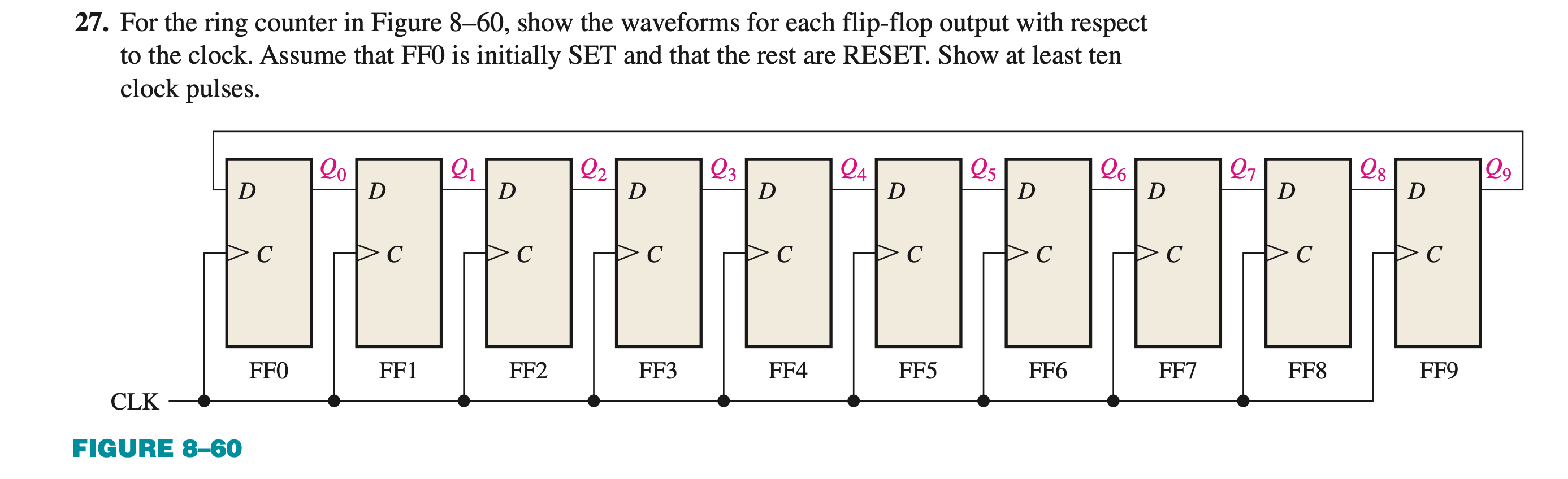

Chap 8

创建时间：2022-11-05 10:54:07

最后修改时间：2022-11-05 11:00:21

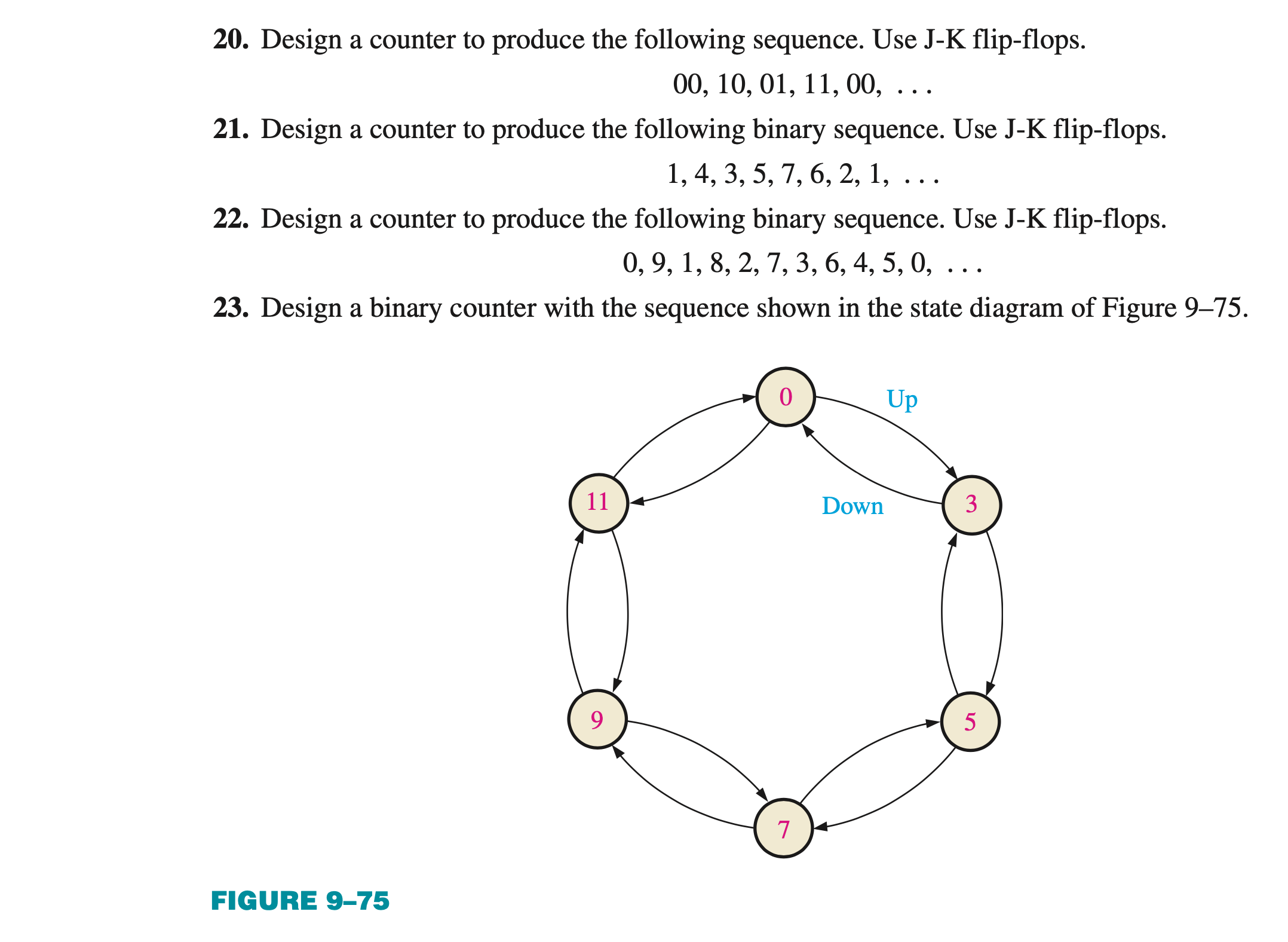

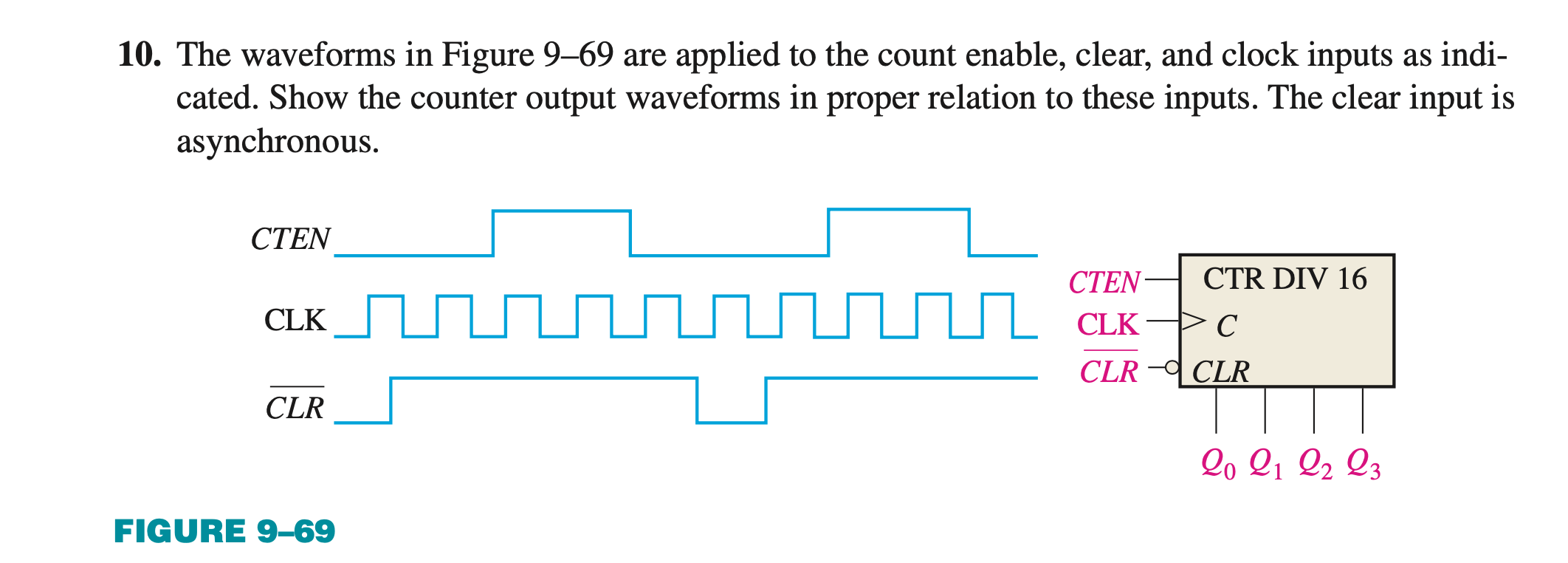

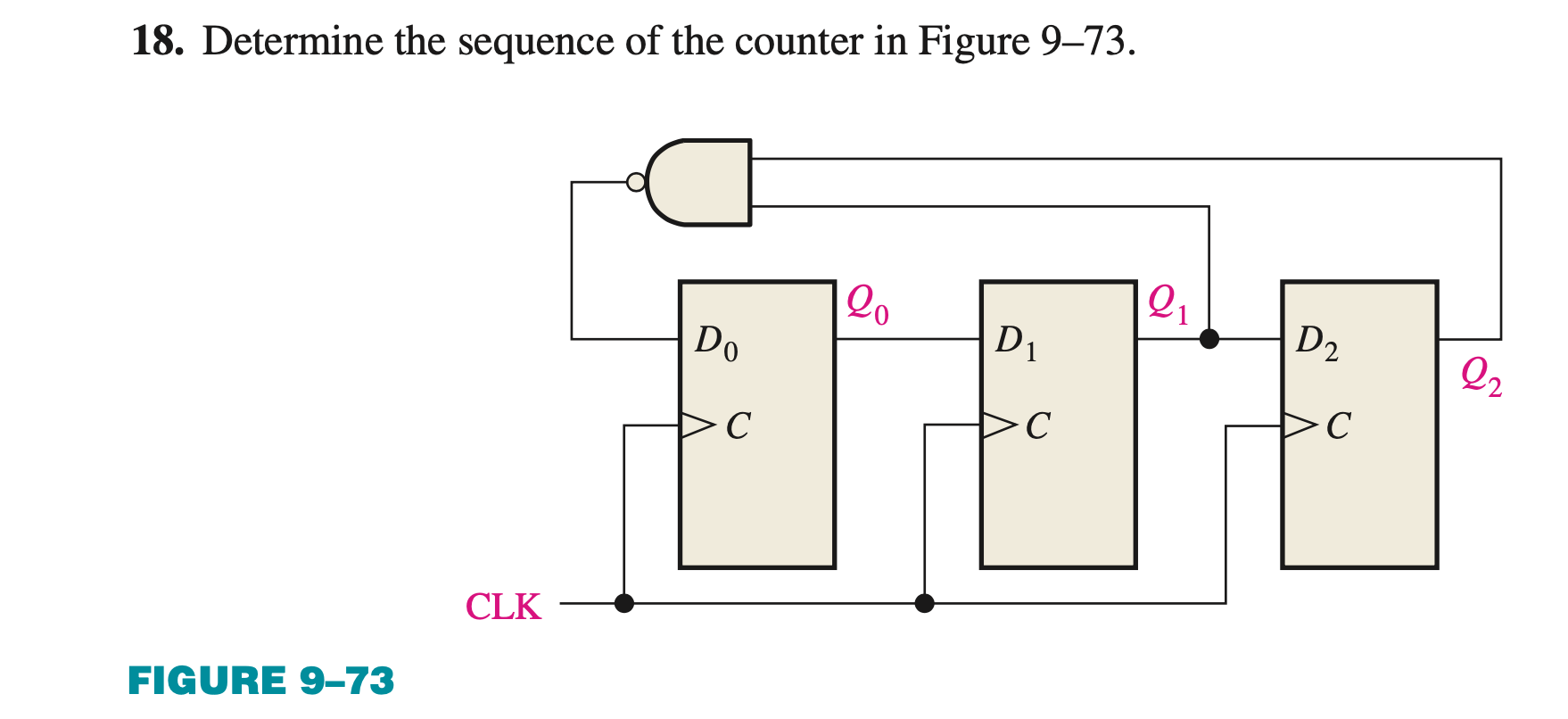

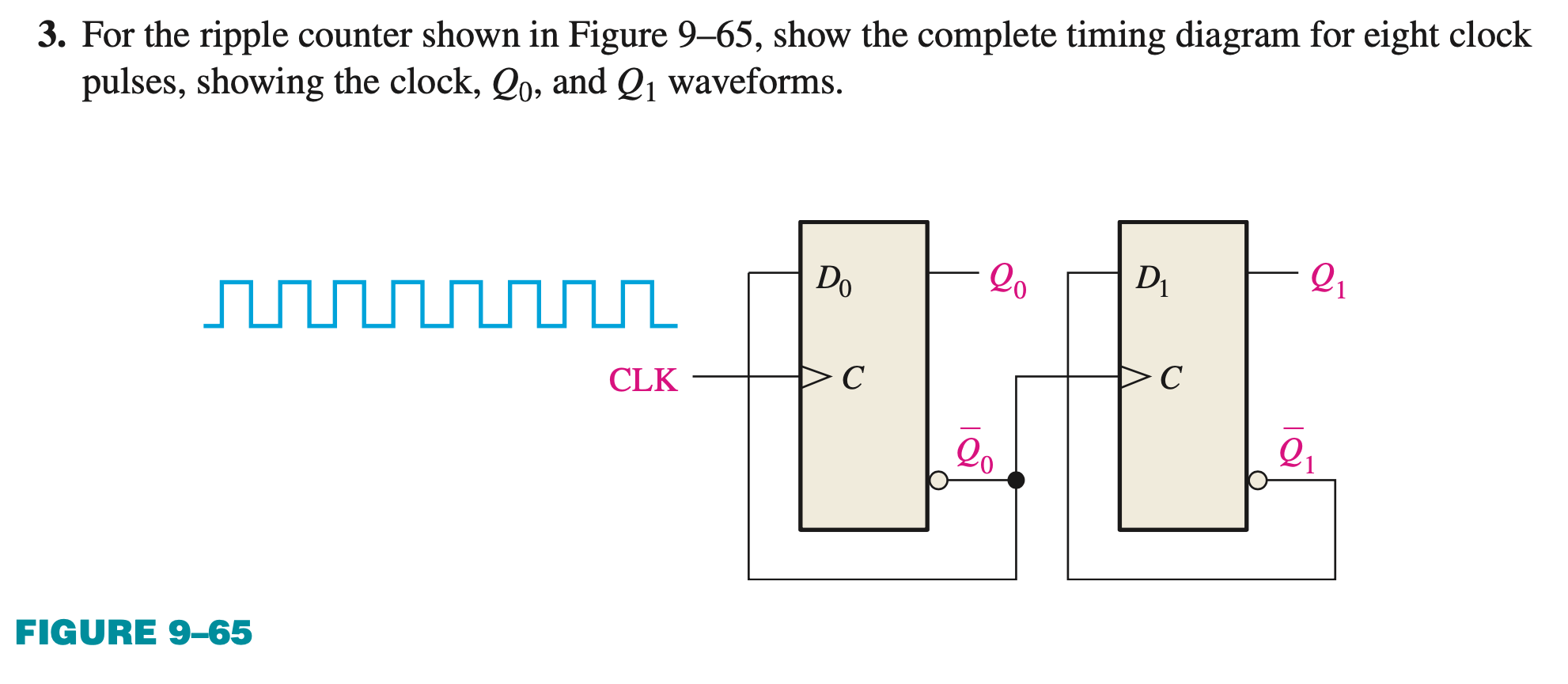

Chap 9
